AB Connectors ABCIRP Plug Connectors with RF Grounding

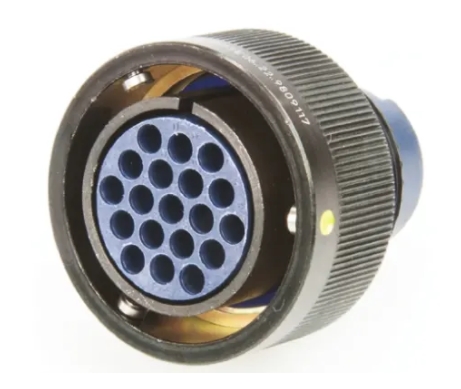

AB Connectors ABCIRP Plug Connectors with RF Grounding, Cable Mount

ABCIRP Plug connectors with RF Grounding cable mount are derived from MIL-C-5015 and VG95234 specifications, these plug connectors are used in the rail industry,heavy industrial and have many military applications. Aluminium alloy construction with black chromate over zinc cobalt plating, with low fire hazard grommets and insulators, these durable and hardwearing plug connectors are cable mounted and offer over 2000 mating cycles and feature reverse bayonet locking. ABCIRP plug connector contacts, which are available separately are industry standard 'F80' type and are retained in the insulator by means of a unique beryllium copper spring clip. Connector sealing features a stepped wire seal grommet which can remove the need to populate unused cavities with filler plugs.

Easy coupling low friction roller pins on plug

360° RFI grounding washer

Hard plastic insulator

Approved NFF16-101 Halogen free materials

Robust beryllium copper clip retained contacts

Modular design

IP67 When mated and using sealed backshell

Compatible with other 5015 reverse bayonet lock types
